This item is - OHME OHMEX1GB003-BL 7.4KW ePod Home EV Charger Type 2 Black
Brand New - Sealed.
12 Month Warranty

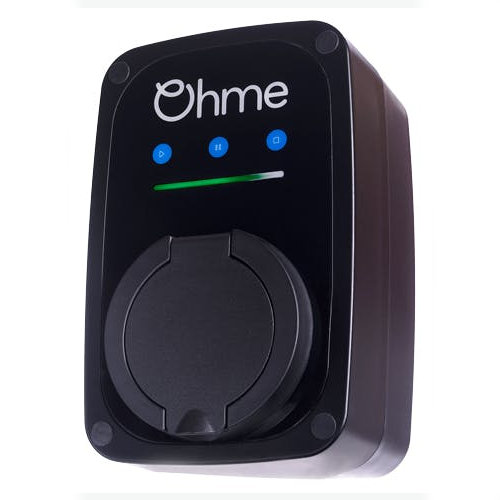

Ohme OHMEX1GB003-BL ePod 7.4kw Untethered Smart EV Charger
* Integrates with all energy providers, Including Octopus & OVO Ev Tarrifs
Ohme's Epod Charger featuring a compant and discreet design, ready for your EV, whatever make or model.
Technical Details
Power rating = 7.4kW
Rated current = 32A max
Nominal supply = 230V AC, 50/60 HZ, single-phase
Supply connections = L+N+E 6mm2
Overcurrent protection = Not fitted, to be fitted separately
Earth leakage protection = RCD Type A 30 mA with integral 6 mA DC, built-in protective earth neutral (PEN) fault detector
Status indication = 5 colour LED indication strip (green, blue, yellow, white, purple)
Charging mode = Mode 3
Socket = Type 2 socket to IEC62196
Supply cable entry = Cable entry through the rear or underside of the unit, suitable for up to 6mm2 conductor size. 25mm gland
and a blanking grommet is provided
Mechanical specs
Dimensions (H/W/D) = 230mm x 140mm x 100mm
Unit weight = 1.5kg (shipping weight: 1.9kg)
Mounting location = Wall or post mounted, indoor or outdoor
Operating temperature = -25°C to 45°C
Storage temperature = -40°C to 85°C
Operating humidity = 5 - 95% RH
Enclosure = PC945(GG), Fire Rated (V-0 UL94)
Ingress protection rating = IP54
Impact rating = IK08
Standard finish = Black
Connectivity & technology specs
Connectivity = 3G/4G multinet sim card (cost covered by Ohme for the first 3 years)
Network connection = Automatic network connection through 4G mobile phone network
Control = Via the three buttons on the charger or via the Ohme smartphone app
Technology = Dynamic load balancing with optional CT clamp
Upgrades = Over-the-air firmware & software upgrades
EAN:
