About this item

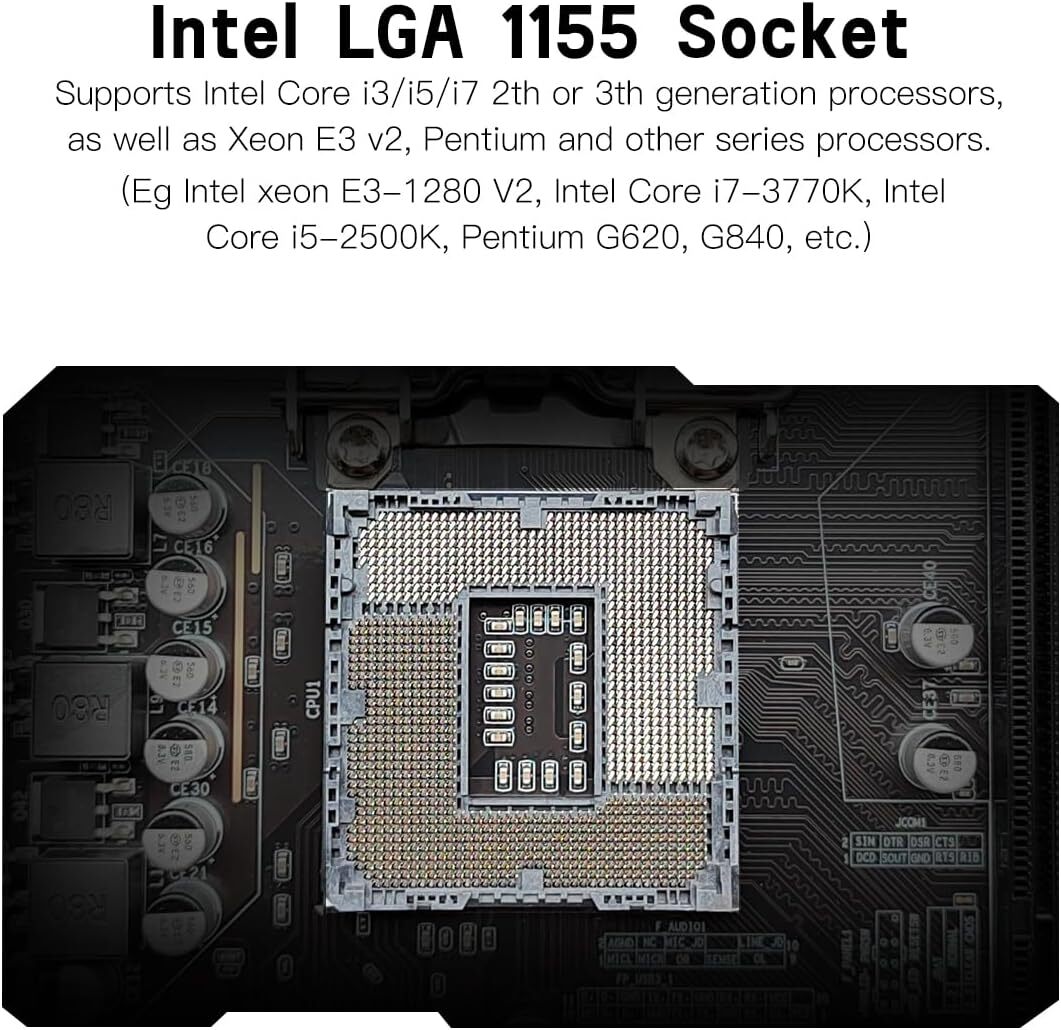

• Intel LGA 1155 Socket: The LGA1155 Motherboard supports Intel Core i3/i5/i7 2th or 3th generation processors, as well as Xeon E3 v2, Pentium series processors. (Eg Intel xeon E3-1230 V2, Intel Core i7-3770K, Intel Core i5-2500K, Intel Core i3-2130, Pentium G620, etc.)
• Dual-channel DDR3 Slots: The Intel H61 Motherboard support DDR3 non-ECC desktop memory max 32GB(2x16GB), unbuffered, supports 1280/1333/1600/1866MHz memory clock speed
• M.2 SSD Interface: This gaming motherboard is equipped with an M.2 interface, which can be converted between NVME and NGFF. the NVME M.2 slot uses the PCIe 2.0 x4 lane and the NGFF M.2 slot uses the SATA lane
• PCIe Slot: The computer motherboard provides 1 PCIe X16 slot. The PCIe standard is determined by the CPU, and under the PCIe 3.0 protocol, the X16 slot has a throughput of 128Gbps
• Video Interface: This DDR3 Motherboard is equipped with VGA and HDMI-compatible Interfaces, which can support 1080P high-definition video output without an external graphics card. Note: To use these two interfaces, your CPU needs to support integrated graphics
• Package Includes: 1*SATA cable, 1*I/O baffle, 1*motherboard. IMPORTANT: The package does not include the user manual. If you need the manual file, please download it from product description page or ask us on Amazon to get it. The motherboard does not include a CR2032L battery, you need to buy the CR2032L battery yourself
• Warm Tips: If no display, no boot, no screen, no network card, no sound card, etc., please ask us on Amazon for help. It is recommend driver download: Driver Talent, or use Win 10 system, it can help you solve all the driver problems. If the CPU does not support integrated graphics, install an external graphics card
